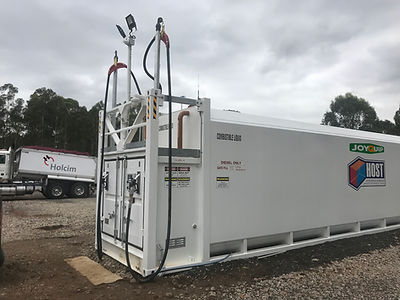

Larger HOST Self Bunded Tanks 12000 to 110000 litre packages
Designed to take full compartments through to full B double loads of fuel, Joyquip Self Bunded Bulk Storage Tank packages are set up to meet your exact requirements. Whilst many think that a tank is just a tank, we have designed a wide variety of features into our tanks. Sloped floor to low point, curved roofs to eliminate water pooling, top entry piping. Talk to us about tanks, we will bore you with the minor details! Needless to say, we know our tanks.
Diesel tanks are available in the following standard sizes, models marked with an asterix are most commonly kept in stock:
Tanks can be customised to suit your specific requirements. Extra nozzle entries, compartments, bottom discharge for special application, let us know what you need
► Also available, Self Bunded AdBlue Tanks and Combo Diesel AdBlue Tanks
► Manufactured to UL142 (which exceeds AS1940, AS1692 and AS1757) each tank is fully fitted out and ready for immediate storage of fuel
Tanks may be fitted with a broad choice of dispensing, fuel management and gauging equipment
PUMPS
Most petrol stations serve their fuel to you at around 40 lpm, truck stops around 100 lpm. You will notice when you use our dispensers that our rates are markedly faster than this, we specify our systems based on the rate at the nozzle, not by the pump rating. Tell us what you need!
► Light Vehicle dispensing – 80 lpm
► Heavy Vehicle and plant dispensing – up to 160 lpm, twin hoses, simultaneous 140 lpm
► Mining Equipment – 800 lpm using fast fill nozzles
► AdBlue Pumps – On tank and Off Tank
► Unloading Pumps may be required if your delivery company does not have pumps onboard their road tankers – up to 1000 lpm
FUEL MANAGEMENT SYSTEMS
Joyquip is not aligned with any particular system, we are happy to work with your existing provider, or, we can make a recommendation based on your requirements
► Smartfill Gen ll is an excellent Australian made and supported system with broad flexibility
► Piusi is a well known Italian brand which is very economical with basic functionality
► Retail systems such as Compac, Transponder and others - White Card / Company Cards - CCDCA (Credit Cards)
TANK GAUGING (ATG)
ATG is like a great set of RM Williams boots. Once fitted you will wonder how you managed without the comfort of knowing how much fuel you have in your tank and when you need to re-order. Joyquip specialises in providing the right ATG solution for your requirement.
► Fuelcraft Ultrasonic Gauging - economical, reliable and can be integrated to many Fuel management systems.
► OPW Nano Tank Gauging - Independent Remote viewing of tank volumes - High and Low Alarms
► World Track Point - ultra simple and economical Ultrasonic gauging with GPS location, see your tank volumes on your phone and receive an email when you reach your re-order point. Know when your tank is being filled by someone else's tanker!
METERS
► Wide variety of electronic or mechanical registers - we specify the correct meter for the application. So no matter if you just want to keep a written record or if you need NMI approved data, we can help you.
BULK DISPENSING EQUIPMENT
► Hose reels from 10m to 50m - good quality reels
► Hi mast hose handling kits - stop damage to your hose whilst still having 6m reach.
► Road Tanker Loading Arms – up to 1800 lpm - Liquip Control Consoles and Metering
► Liquip Over Fill Control Systems
► Liquip Dead Man Switch
Model # | Empty Weight - kg | Safe Fill Capacity - litres | Size LxWxH - m |
|---|---|---|---|
J12NP* | 4,300 | 11,990 | 2.99x2.44x2.90 |
J33NP* | 6,950 | 31,000 | 6.06x2.44x2.90 |
J35 | 7,200 | 35,680 | 6.06x2.44x2.90 |
J55 | 9,850 | 54,000 | 9.05x2.44x2.90 |
J70NP* | 12,750 | 67,000 | 12.19x2.44x2.90 |
J75 | 13,300 | 72,050 | 12.19x2.44x2.90 |
J85NP | 14,910 | 80,220 | 14.63x2.44x2.90 |
J100 | 17,100 | 97,000 | 14.63x2.44x3.20 |
J110 | 18,200 | 105,000 | 14.63x2.50x3.20 |
CONSIDERATIONS WHEN CHOOSING YOUR JOYQUIP TANK AND DISPENSING PACKAGE
► TANK
Choose tank size from 1000 to 110,000 litres. Depends how often your fuel supplier delivers to your site and how much you consume per day.
► FLOW RATE
How fast do you need to dispense fuel? We can provide flow rates from 80, 100, 140, 180 through to 2400 lpm.
Flow rate v tank size examples
100 litre tank - 80 lpm fills the tank in 1.3 minutes
500 litre tank - 140 lpm fills the tank in 3.6 minutes
1000 litre tank - 180 lpm fills the tank in 5.6 minutes
► FUEL USE TRACKING
How many operators are using your fuel?
- The simplest system could be a book on a clipboard that you use to keep track of where your fuel goes. It works, however, it has its shortcomings, very open to human error.
- If you have <10 users you can still easily track your fuel with a basic fuel management system. It's less expensive and simpler than you might think.
- More than 10 users? Multiple sites? A fuel management system will save you plenty of heartache and you will know where every litre of your fuel is going. We have systems with no ongoing charges and lifetime support included in the initial purchase.
► SELLING FUEL
Make sure your meters and displays are NMI approved. Whilst this adds $ to your investment, we can provide systems that are surprisingly economical and are framed around your business model, not someone else's!
CALL US TO HAVE A CHAT ABOUT YOUR NEEDS!
